Product Description
【5.12kWh Large Capacity】BSLBATT 100Ah Lithium Battery 48V has a large capacity of 5.12kWh, Our 48V 100Ah solar battery is composed of 16 high quality LiFePO4 cells connected in series, with an actual voltage of 51.2V.

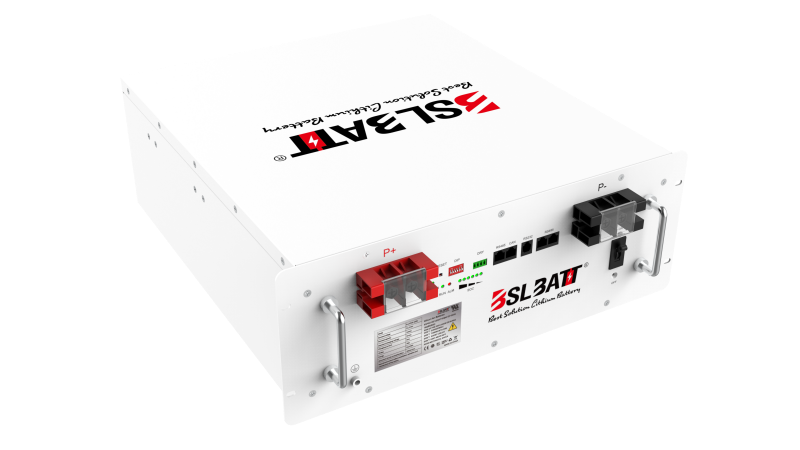

【3U Rack Battery】BSLBATT 48V 100Ah Lithium Battery is a standard 3U Rack battery size, which is smaller size compared to ordinary batteries of the same capacity, can save an appropriate 1/3 volume and improve space utilization. While supporting one-touch ON/OFF button switching enables it to operate easily and is simple to use. It is easier to carry or move for RV, camping, and off-grid.
【Expandable Battery Pack】BSLBATT 48V Lithium Iron Phosphate Battery supports 63 batteries in parallel, easily setting up a 51.2V 6300A Large Solar Battery System with 322kWh large capacity, support Max. 322kW Load Power (does not support connecting in series), meets the power requirements of a wide range of application scenarios. Allowing you to have your own energy station.
Product Specification
| Battery Model | B-LFP48-100E 2.0 | |
|---|---|---|
| Usable Energy | 4.992KWh | 5.325 KWh |
| Nominal Voltage | 48 V | 51.2 V |
| Charge Voltage | DC 55.4V | DC 58.4V |
| Nominal Capacity | 104Ah | |
| Charge Current | Standard charge: 0.5C Approx 3 Hour Rapid charge: 1C Approx 1.5 Hour | |
| Max. Discharge Power | 4.8 kW | 5.12 kW |
| Max. Charge Current | 50A | |
| Max. Discharge Current | 100A | |
| Max. Pulse Current | 150A(300ms) | |
| Installation Location | Racks or cabinets | |
| Cell & Method | 15S2P | 16S2P |
| Enclosure Type | IP23 | |
| Cycle Life | Over 6000 Cycles | |
| Operating Temperature | Charging | 0C ~ 45C |
| Discharging | -20C ~55C | |
| Storage Temperature | - 10C ~ + 45C | |
| Battery Weight | Approx: 43.1 kg | Approx: 46 kg |
| Dimension (W x D x H) | 465mm*136mm*540mm | |
| Warranty | 10 Years Warranty |
Datasheet & Manual Downloads
BSLBATT B-LFP48-100 5.12kWh Datasheet & Manual
THE WORLD’S SMARTEST BATTERY MANAGEMENT SYSTEM
The built-in battery management system integrates with multilevel safety features including:
- Overcharge and deep discharge protection
- Voltage and temperature observation
- Over current protection
- Cell monitoring and balancing
- Over-heat protection
This high-performance BSLBATT 48V 100Ah lithium ion battery has a large power capacity, with fast charging and continuous discharge power, providing 98% efficiency.
What we can do for you
B-LFP48-100E 2.0
5.12-307.2 kWh | Low Voltage Battery
100Ah Lithium Battery 48V
BSLBATT 100Ah Lithium Battery 48V is a high-performance and reliable power source ideal for many applications. This battery is designed to be lightweight and compact, making it easy to transport and install. It has a high energy density and a long cycle life, which means it can provide consistent power for longer durations.
Product Advantages
- Tier One, A+ Cell Composition
- 99% Efficiency LiFePo4 16-Cell Pack
- 6000 Cycles @ 80% DOD
- Flexible Racking Options
- Environmentally Friendly & Lead-Free
- Maximum 60 in parallel
- Longer Lasting; 15-20 year Design Life
- Continuous current 0.5C, peak can reach 1C
- Reliable Built-In BMS, Remote upgrade monitoring
- 10-year warranty
