36V Lithium Forklift Batteries
Designed for electric pallet jacks, walkie stackers, and medium-duty reach trucks. Drop-in replacement for lead-acid, with zero maintenance and opportunity charging support for cold storage, food logistics, and multi-shift distribution operations.
No watering, no equalization charging, no electrolyte checks. The sealed LiFePO4 cell design eliminates all routine battery tasks, saving a fleet of 10 units over 40 labor hours per month.
Partial charges cause no damage to cell chemistry. Operators can top up during breaks or shift handovers, covering single and double-shift operations on one battery without a full charge cycle.
Standard models are rated at 3,500 to 4,500 cycles, with high-performance configurations exceeding 6,000 cycles. One lithium unit covers the same operating period as three to four lead-acid replacements.
IP54 as standard, IP65 optional. Steel enclosure with integrated waterproof gasket handles wash-down routines, cold storage environments, and high-humidity logistics facilities without performance loss.
Built-in BMS displays live state of charge on a 4.3-inch touch screen. All units connect to BSL Cloud over WiFi for remote fleet monitoring without physical checks.
Available in bottom-weighted and perimetric counterweight configurations. Most Crown, Toyota, Hyster, Yale, and Jungheinrich 36V models accept a direct fit without tray modification.
How to Choose the Right 36V Battery Capacity
Match your daily shift schedule to the capacity range below. For cold storage operations or high-frequency loading cycles, select the upper end of the recommended range.
- Single shift — 173 to 280 Ah covers a standard 8-hour workday with buffer capacity for opportunity top-ups.
- Double shift — 304 to 560 Ah supports two consecutive shifts with opportunity charging during crew changes.
- Triple shift / 24h — 608 Ah and above for continuous operations that run across all three shifts.
Compatible 36V Pallet Jack and Stacker Models
BSLBATT 36V lithium batteries are widely used in electric pallet jacks, walkie stackers, and medium-duty reach trucks across warehouse, cold storage, and food logistics operations. Crown pallet jack and stacker equipment is among the most tested applications in our 36V lineup, with confirmed fitment across multiple Crown 36V models without tray modification. Compatible with Toyota, Hyster, Yale, Jungheinrich, and Raymond equipment as well.
Explore more BSLBATT 36V forklift lithium battery products
| Model | Nominal voltage | Nominal capacity | Stored energy | Dimensions (mm) | Number of module methods | Standard case weight | Casing material | IP rating |
|---|---|---|---|---|---|---|---|---|
| B-LFP36-173MH | 38.4V | 173Ah | 6.64kWh | Support Customized | 1P*12S*1 | 108kg( 238.10lbs. ) | Steel | IP54 (IP65 optional) |
| B-LFP36-205MH | 205Ah | 7.87kWh | 1P*12S*1 | 122kg( 268.96lbs. ) | ||||
| B-LFP36-230MH | 230Ah | 8.83kWh | 1P*12S*1 | 129kg( 284.40lbs. ) | ||||
| B-LFP36-280MH | 280Ah | 10.752kWh | 1P*6S*2 | 148kg( 326.28lbs. ) | ||||
| B-LFP36-304MH | 304Ah | 11.67kWh | 1P*6S*2 | 155kg( 341.72lbs. ) | ||||
| B-LFP36-346MH | 346Ah | 13.29kWh | 2P*4S*2 | 171kg( 376.99lbs. ) | ||||
| B-LFP36-410MH | 410Ah | 15.744kWh | 2P*4S*3 | 204kg( 449.74lbs. ) | ||||
| B-LFP36-460MH | 460Ah | 17.664kWh | 2P*4S*3 | 219kg( 482.81lbs. ) | ||||
| B-LFP36-560MH | 560Ah | 21.504kWh | 2P*4S*3 | 261kg( 575.41lbs. ) | ||||

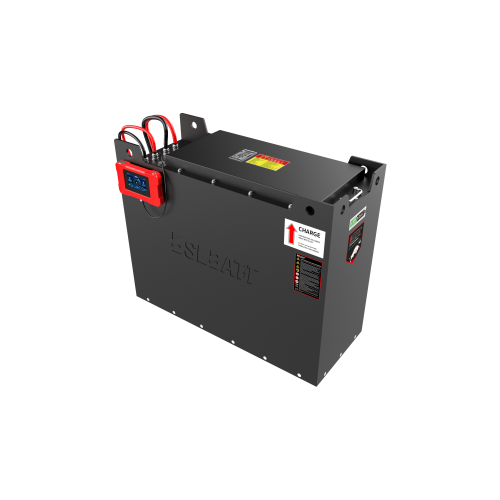

| B-LFP36-608MH-A* | 608Ah | 23.347kWh | 2P*4S*3 | 420kg( 925.94lbs. ) | ||||
| B-LFP36-608MH-B* | 608Ah | 23.347kWh | 2P*4S*3 | 320kg( 705.48lbs. ) | ||||
| B-LFP36-615MH | 615Ah | 23.616kWh | 3P*4S*3 | 281kg( 619.50lbs. ) | ||||

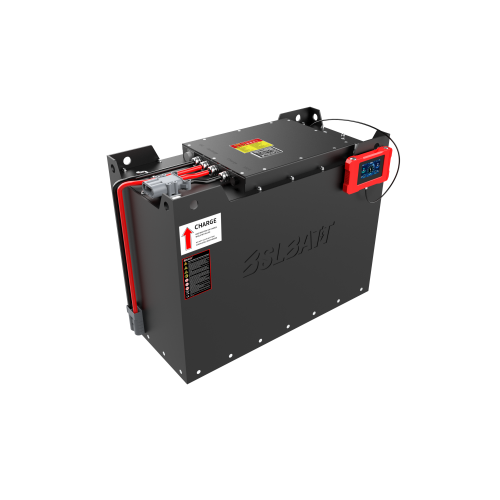

| B-LFP36-690MH | 690Ah | 26.496kWh | 3P*4S*3 | 301kg( 663.59lbs. ) | ||||

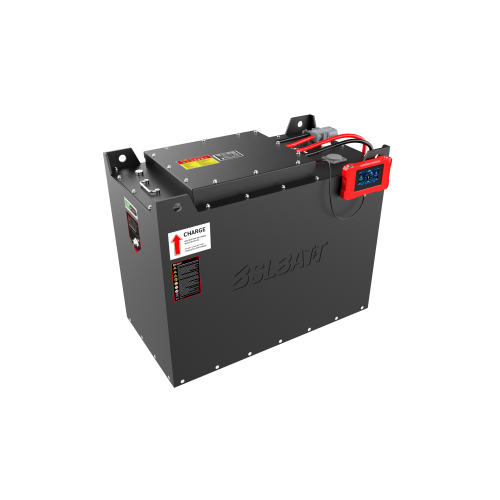

| B-LFP36-820MH | 820Ah | 31.488kWh | 2P*4S*6 | 344kg( 758.39lbs. ) | ||||
| B-LFP36-920MH* | 920Ah | 35.328kWh | 4P*2S*6 | 403kg( 888.46lbs. ) | ||||
| B-LFP36-1120MH | 1120Ah | 43.01kWh | 4P*2S*6 | 481kg( 1060.42lbs. ) |
Models shown in red font are
Solutions Certified.
Can’t Find the Right Battery Specification?
FAQ
What equipment uses a 36V lithium battery?
36V systems are most commonly found in electric pallet jacks, walkie stackers, and light to medium-duty reach trucks. If your current lead-acid battery is labeled 36V or 3PzS/3PzB, a 36V lithium forklift battery is the correct replacement voltage.
How many shifts can a 36V forklift lithium battery support?
A 36V lithium battery in the 173 to 280 Ah range covers one full 8-hour shift. Models from 304 to 560 Ah support two consecutive shifts with opportunity top-ups during breaks. For 24-hour operations, 608 Ah and above is recommended. Partial charging between shifts does not reduce cell lifespan.
Does a 36V forklift battery work in cold storage?
Yes. BSLBATT 36V models operate reliably in cold storage environments. An optional heating function maintains cell performance at low temperatures. Batteries charge in place without condensation issues, and runtime improvement versus lead-acid in cold conditions typically exceeds 60%.
Can I replace my 36V lead-acid battery without modifying the tray?
In most cases, yes. BSLBATT 36V batteries are available in configurations matching standard lead-acid tray dimensions for Crown, Toyota, Hyster, Yale, Jungheinrich, and Raymond models. Submit your tray dimensions and connector position for a fitment confirmation within 48 hours.
