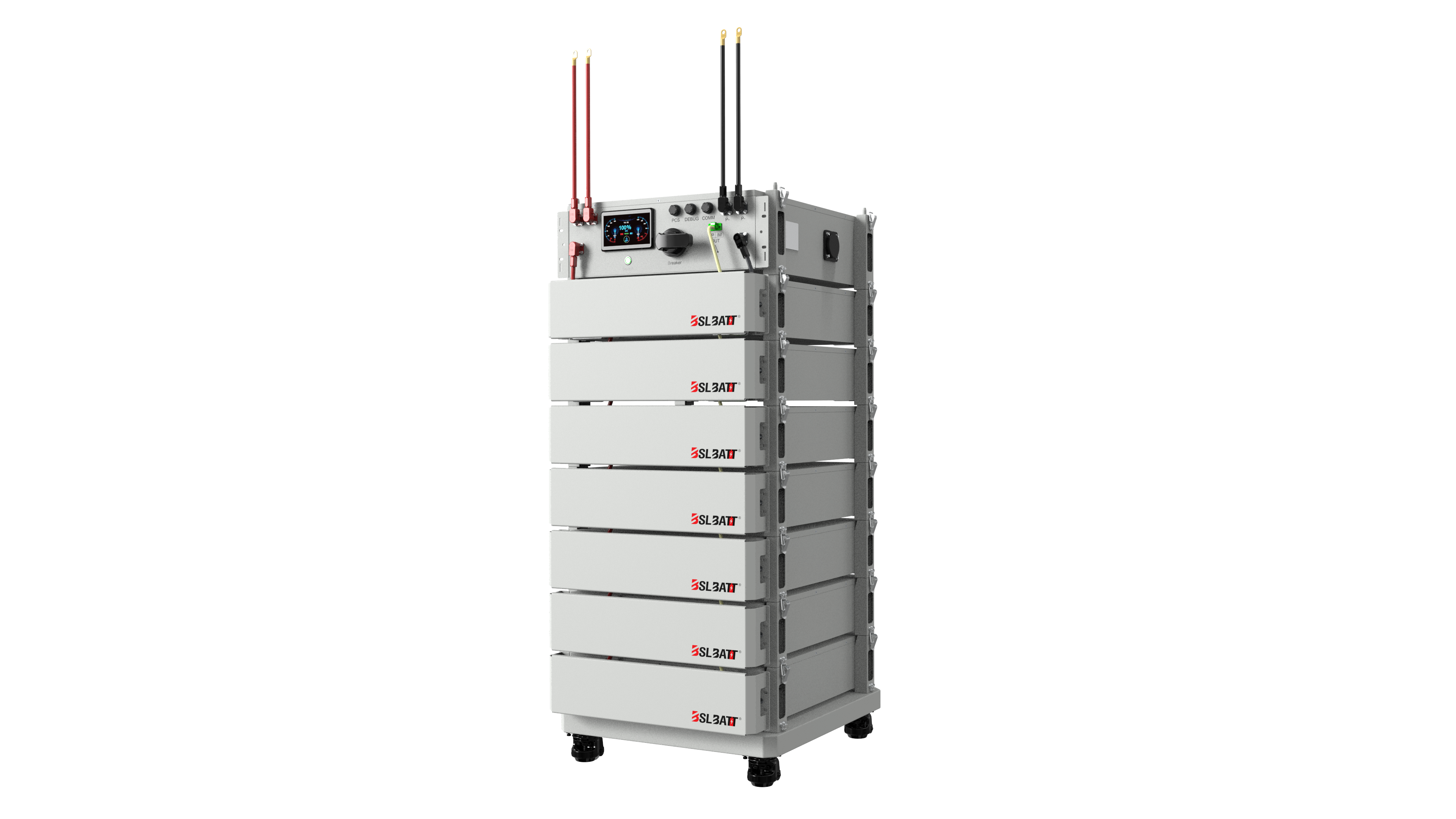

High Voltage Lithium Battery All-in-on Energy Storage System
Key Features of ESS-GRID HV PACK
Safe and Reliable
The ESS-GRID HV PACK delivers high output power with less current and high-quality power output. Made from safe and reliable LiFePO4 anode material, it operates with an IP20 protection level, ensuring reliability.
Modular and Stackable
The system is designed for high efficiency, allowing series connections for greater power. It can be scaled up with up to 5 HV Battery Pack strings, providing a maximum capacity of 466kWh. Its flexible design adapts to various scenarios.
HV and High Efficiency Design
With a 115V-800V high-voltage design, the system boasts high conversion efficiency, saving energy and reducing environmental impact. It generates less heat and minimizes energy loss, supporting both single-phase and three-phase inverters.
Multiple Ports to Support Cloud-based System
Equipped with RS485, CAN, and other communication interfaces, the system supports remote upgrades, simple maintenance, and cloud connectivity for precise monitoring of each battery group. It also includes Bluetooth and WiFi functionality.
Versatile Applications of ESS-GRID HV PACK
Peak Shaving
Reduces electricity costs by discharging stored energy during peak hours.
Power Backup
Provides reliable backup power during outages.
Demand Response
Optimizes energy use during high-demand periods for cost savings.
PV Self-consumption
Maximizes solar energy use by storing surplus power for later.
Off-grid/On-grid
Suitable for both off-grid independence and grid-connected systems.
Technical Specifications
| Model | HV PACK 5 | HV PACK 8 | HV PACK 10 | HV PACK 12 |
| Module Energy (kwh) | 7.776kWh | |||
| Module Nominal Voltage (V) | 57.6V | |||
| Module Capacity (Ah) | 135Ah | |||
| Controller Working Voltage | 80-800 VDC | |||
| Rated Voltage(V) | 288 | 460.8 | 576 | 691.2 |
| Battery Qty In Series (Optional) | 5(Min) | 8 | 10 | 12(Max) |
| System Configuration | 90S1P | 144S1P | 180S1P | 216S1P |
| Rate Power(kWh) | 38.88 | 62.21 | 77.76 | 93.31 |
| Maximum Charging Current(A) | 67.5 | |||
| Maximum Discharging Current(A) | 67.5 | |||
| Dimension(L*W*H)(MM) | 620*726*1110 | 620*726*1560 | 620*726*1860 | 620*726*2146 |
| Host Software Protocol | CAN BUS (Baud rate @250Kb/s) | |||
| Cycle Life(25°C) | 6000 cycles @90% DOD | |||
| Protection Level | IP20 | |||
| Storage Temperature | -10°C~40℃ | |||
| Warranty | 10 years | |||
| Battery Life | ≥15 years | |||
| Weight | 378Kg | 582Kg | 718Kg | 854Kg |
| Certification | UN38.3 / IEC62619 /IEC62040 | |||
