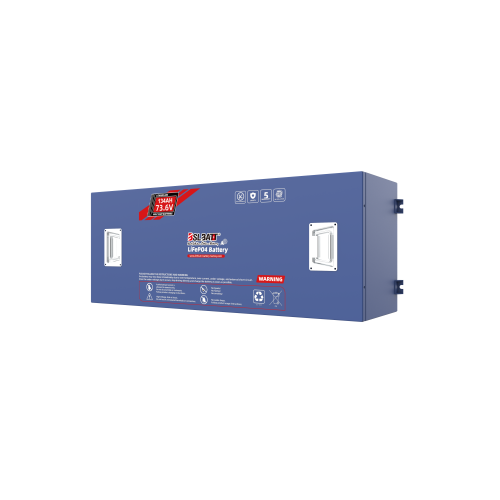

| Nominal Voltage | 72V (73.6V) |
|---|---|
| Nominal Capacity | 135Ah |
| Stored Energy | 9,936Wh |
| Battery Group | 23S1P |
| Battery Cell | EVE LiFePO4 |
| Dimensions (L×W×H) | 35*13.1*9.8 Inches (890*333*250 mm) |
| Weight | 187 lbs (86 kg) |
| Max Continuous Discharge | 400A |
| Max Continuous Charge | 50A |
| IP Rating | IP65 |
| Driving Range (Full Charge) | 60-70 Miles ( 97-113 KM) |
|---|---|
| Design Life | 12 years |
| Warranty | 5 years /10000 hours |
| Cycle Life | 6000 times |
| Cell Certifications | UL/CE/ICE/KC/UN38.3/ISO/ROHS |
|---|---|
| Battery Certifications | UN38.3 / UL 1973 / UL 9540A |
| Charging Temp | 32°F to 131°F (0℃ to 55°C) |
| Discharging Temp | -4°F to 140F (-20℃ to 60℃) |
| Storage Temp (3 months) | -4°F to 140°F (-20℃ to 60℃) |
Built with globally recognized A-grade EVE A+ cells, ensuring stable performance and long-term durability.
Delivers over 4000 cycles at 80% depth of discharge, minimizing downtime and replacement costs.
Built-in BMS offers 20+ safety features, including thermal runaway prevention.

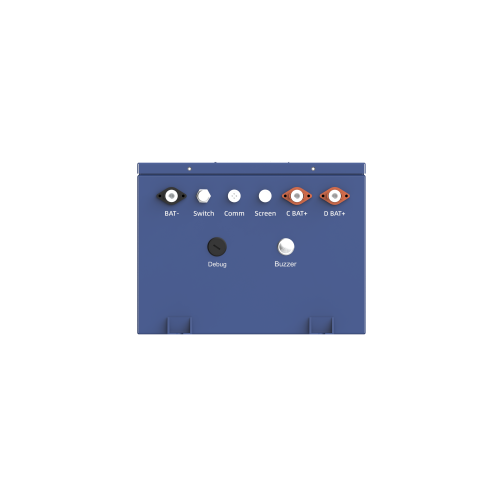

Plug-and-play design supports CAN and RS485, compatible with various controllers and displays.
Features intelligent SOC, fault alarms, and a 3-meter extension cable for quick, flexible installation.

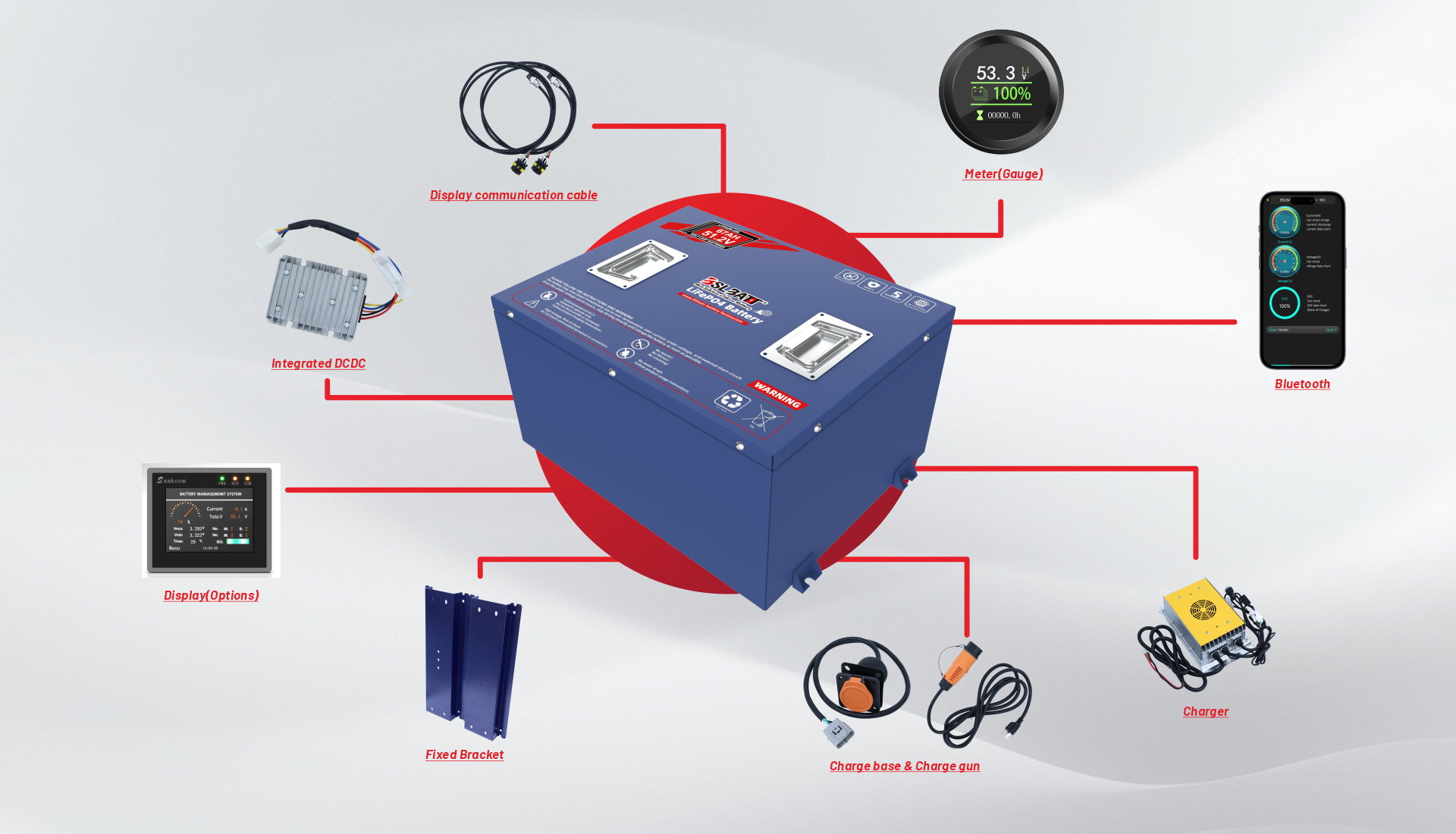

BSLBATT offers a complete upgrade kit with all the accessories needed for a quick and easy installation. The kit includes the advanced BSLBATT charger, compatible with the Delta-Q protocol and featuring a lithium-ion algorithm that supports 2.5 hours of fast charging. The smart charger has an automatic heat function that heats up below 0°C and charges above 0°C for years of safe charging. BSLBATT golf cart battery kits include user manual, warranty, golf cart battery, IP67 rated 1300W waterproof charger, charging adapter and wiring harness, round SOC gauges (with optional square touchscreen) and mounting hardware.
