  5. 48V 615Ah Crown Walkie Stacker Battery Deep Cycle Lithium Battery for Walkie Stackers

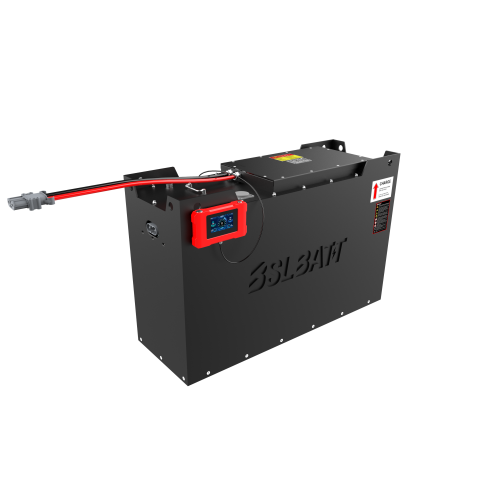

48v 460Ah Lithium Battery Converting Lead-acid Big Joe Pallet Jack Battery Replacement

B-LFP48-460MH
Nominal Voltage 51.2 V
Nominal Capacity 460 Ah
Stored Energy 23.55 kWh
Self-discharge <3% per month
Design Life >10 years
Cycle Life >3500 cycles
Group Mode YW230AH / 2P*4S*4
Dimensions (LxWxH) 815*540*400 MM / 32.09*21.26*15.75 in
Standard Case Weight 266.42 Kg / 587.41 lb
Ingress Protection IP65
Lead Acid Model (BCI Number) 24-85-15
Charge Method CCCV
Recommended Chargers 48V 200A
Matching Charger Brands SPE / FRONIUS / DELTA-Q / ECOTEC
Charging Head REMA320
Discharge Head ANDERSON350
Display Magnetic Touch Display
Vehicle communication mode CAN
Display communication method RS485
Charging Temp 0°C to 50°C / 32°F to 131°F
Discharging Temp -20°C to 55°C / -4°F to 131°F
Storage Temp 0°C to 40°C / -4°F to 113°F
Certification CE, UN38.3, UL2580, IEC, CB, ISO9001
Shipping Classification UN 3480
B-LFP-48-460MH is a reliable upgrade for your Big Joe pallet jack, seamlessly replacing traditional lead-acid batteries with lithium-ion technology. It offers fast charging, maintenance-free operation, and stable power for longer runtime. Lightweight and easy to install, this battery is designed to enhance productivity and keep your equipment running smoothly, making it a smart choice for modern material handling needs.
Send Inquiry Document

Product Features

Upgrade Forklift Operations in Narrow Aisles

  • Designed for Yale and Big Joe forklifts, the B-LFP-48-460MH is a next-generation 48V lithium battery built for efficiency.
  • Its 460Ah output supports extended usage in dense racking environments without the need for mid-shift battery changes.
  • Maintenance-free and lightweight, it simplifies forklift upkeep and reduces handling requirements.
  • The battery integrates easily with multiple forklift models, supporting seamless upgrades from lead-acid systems.
  • A stable power profile enhances forklift performance even under high-load conditions.

Comprehensive Battery Testing for Guaranteed Quality

Electrical Performance Testing

Verify battery capacity and charge/discharge performance to ensure stable output without overheating or early degradation.

Environmental Testing

Use temperature cycling and thermal shock tests to confirm reliable operation under extreme and changing climates.

Mechanical & Durability Testing

Conduct vibration, drop, and crush tests to ensure the battery structure remains intact during transport and tough conditions.

Safety Testing

Test under short circuit, overcharge, and over-discharge conditions to prevent fire, leakage, or explosion.

Regulatory Compliance Testing

Confirm compliance with international standards such as UL2580, UL2271, UL583 Type EE, and UN38.3 for safe handling and transport.

product

Discover More BSLBATT 48V Lithium Battery Solutions

Model Nominal Voltage Nominal Capacity Stored Energy Dimensions(mm) Number of Module Methods Case Weight Standard Casing Material IP Rating
B-LFP48-205MH 51.2V 205Ah 10.50kWh Support Customized 1P*8S*2 145kg(318.60 lbs. ) Steel IP65
B-LFP48-230MH 51.2V 230Ah 11.78kWh 1P*8S*2 154kg( 339.98 lbs. )
B-LFP48-280MH 51.2V 280Ah 14.34kWh 1P*8S*2 179kg( 393.76 lbs. )
B-LFP48-304MH 51.2V 304Ah 15.56kWh 2P*4S*4 189kg( 416.67 lbs. )
B-LFP48-346MH 51.2V 346Ah 17.72kWh 2P*4S*4 209kg( 461.34 lbs. )
B-LFP48-410MH 51.2V 410Ah 20.99kWh 2P*4S*4 242kg( 533.59 lbs. )
B-LFP48-460MH 51.2V 460Ah 23.55kWh 2P*4S*4 266kg( 587.36 lbs. )
B-LFP48-519MH 51.2V 519Ah 26.57kWh 3P*4S*4 306kg( 675.30 lbs. )
B-LFP48-560MH 51.2V 560Ah 28.67kWh 2P*4S*4 332kg( 732.40 lbs. )
B-LFP48-608MH 51.2V 680Ah 31.13kWh 1P*8S*2 349kg( 769.41 lbs. )
B-LFP48-615MH 51.2V 615Ah 31.49kWh 3P*4S*4 359kg( 790.46 lbs. )
B-LFP48-690MH 51.2V 690Ah 35.33kWh 3P*4S*4 400kg( 881.05 lbs. )
B-LFP48-820MH 51.2V 820Ah 41.98kWh 4P*4S*4 468kg( 1031.90 lbs. )
B-LFP48-920MH 51.2 920Ah 47.10kWh 4P*2S*8 527kg(1161.50 lbs. )
B-LFP48-1120MH 51.2V 1120Ah 57.34kWh 4P*2S*8 629kg( 1387.64 lbs. )

Related Products

B-LFP82.3-690MH

40-150-19

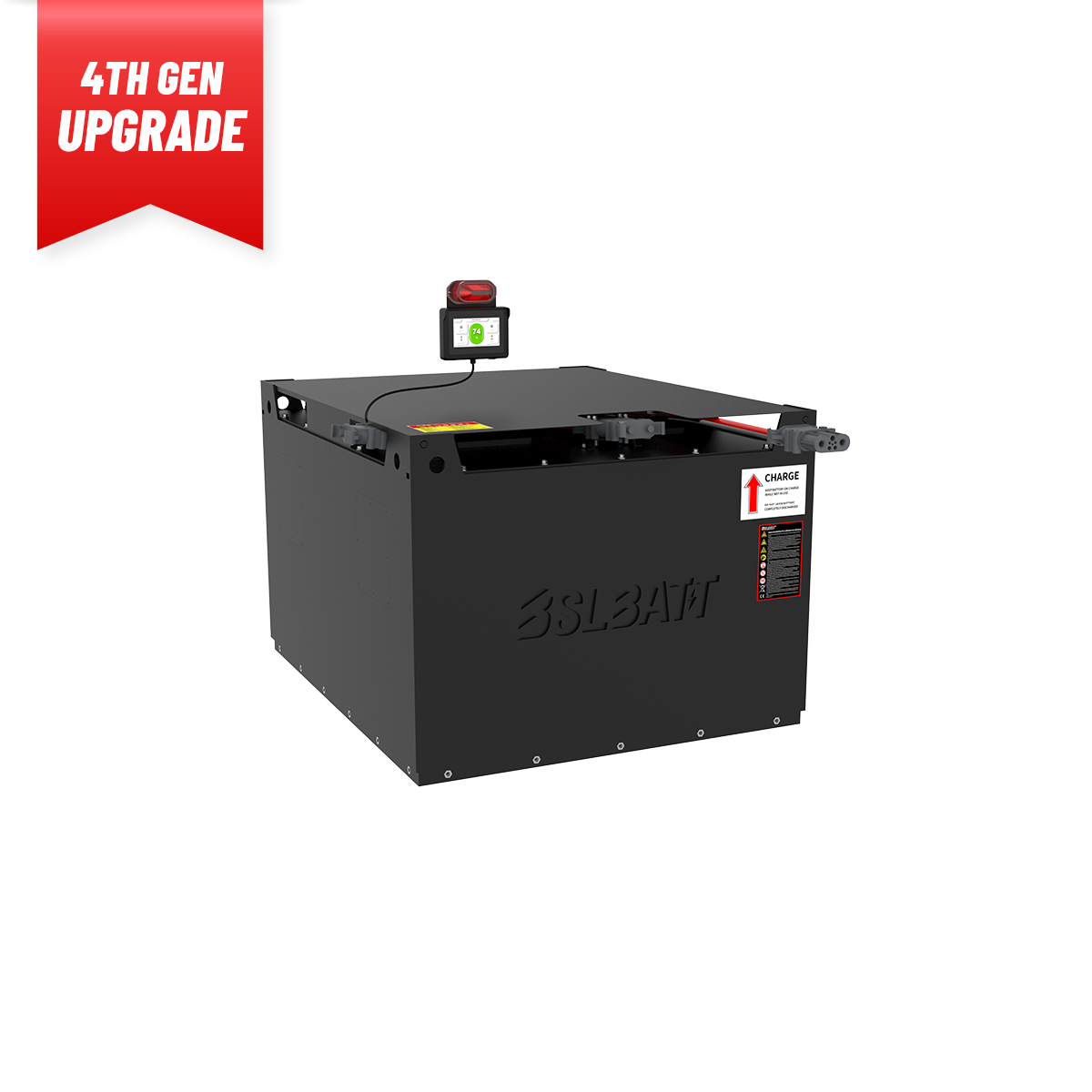

B-LFP83.2-615MH

40-150-17

B-LFP80-608MH

40-150-17/ 40-125-17

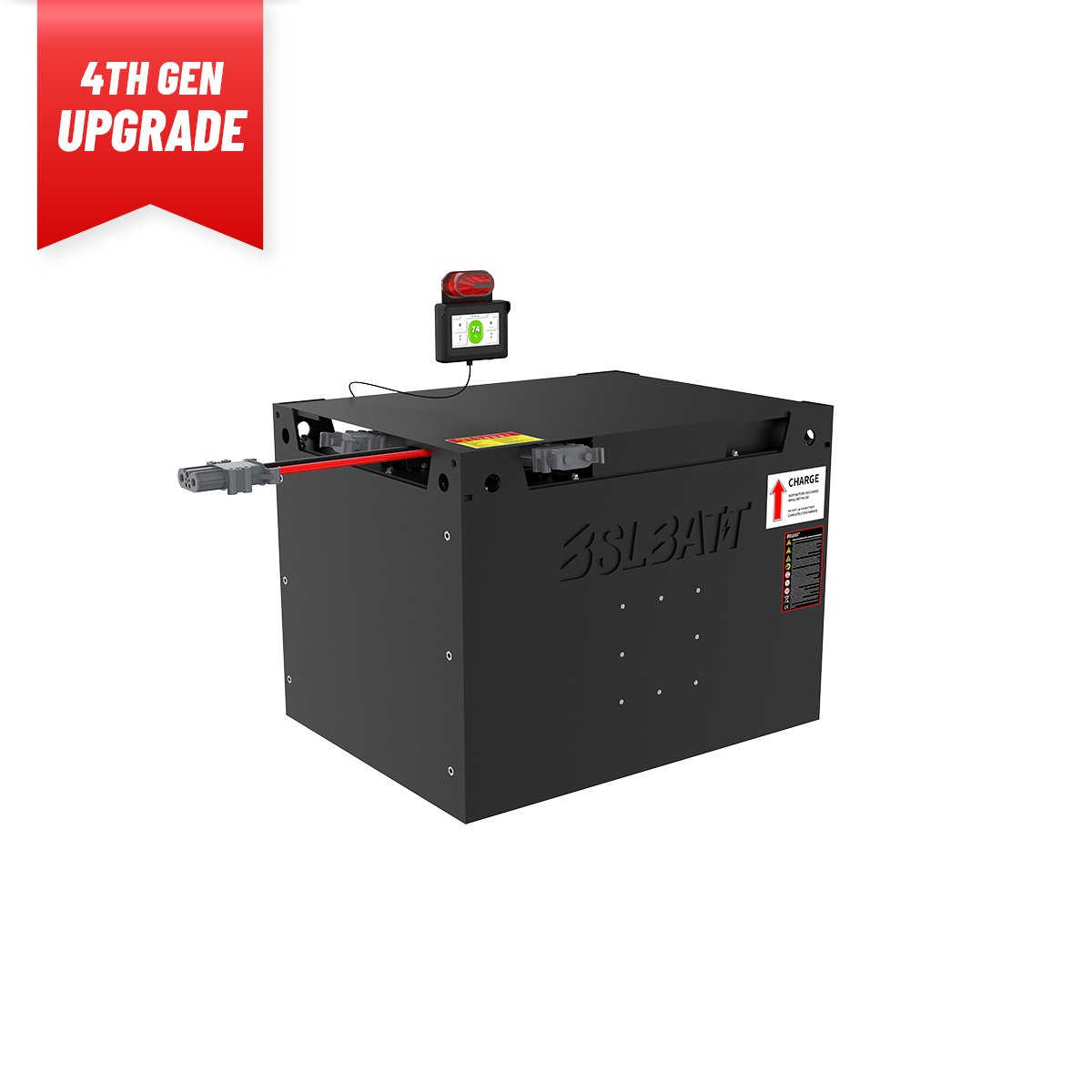

B-LFP80-560MH
