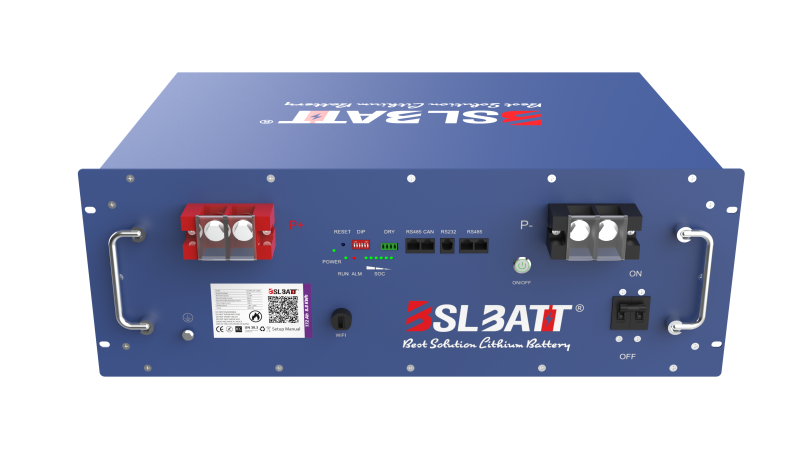

51.2V 170Ah 8.8kWh Lithium Solar Battery Rack Battery Energy Storage System
The B-LFP48-170E is a 51.2V, 170Ah server rack lithium iron phosphate battery with a total capacity of 8.8 kWh. It supports up to 63 modules in parallel and is designed for residential and commercial energy storage. It integrates seamlessly with your existing home solar panel system, storing excess power during the day and discharging at night to achieve energy self-sufficiency. The battery is equipped with an advanced built-in Battery Management System (BMS) that prevents over-charging, over-discharging, and short circuits, ensuring stable 51.2V power output and long-lasting performance.
Key Features of the 51.2 V 8 kWh Home Battery Storage
Safety
Cobalt-free LFP chemistry ensures safety. Built-in aerosol fire extinguisher and intelligent BMS protect against overcharge, overdischarge, and short circuits.
Reliability
1C continuous discharge, over 6000 cycles, and a 10-year warranty with technical support for long-lasting performance.
Flexibility
Supports up to 63 parallel 8kWh batteries. Modular design for easy stacking, with options for wall or cabinet mounting.
Monitoring
Remote upgrades via AOT, with WiFi/Bluetooth for app-based monitoring and real-time performance tracking.
Technical Specifications
| Model | B-LFP48-170E |
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 8.8 kWh |
| Cell ＆ Method | 16S2P |
| Dimension | 403*640(600)*277 |
| Weight | 75 Kg |
| Cycle Life | ＞ 6000 cycles, 25℃ |
| Design Life | ＞ 15 Years（25℃ / 77℉） |
| Protection Level | IP20 |
| Expansion | Up to 63 units in parallel |
| Warranty | 10 years |
| Certification | UN38.3,UL1973,IEC62619,AU CEC,USCA CEC |
