12V 200Ah LiFePO4 Battery Deep Cycle Lithium Battery RV Solar Battery

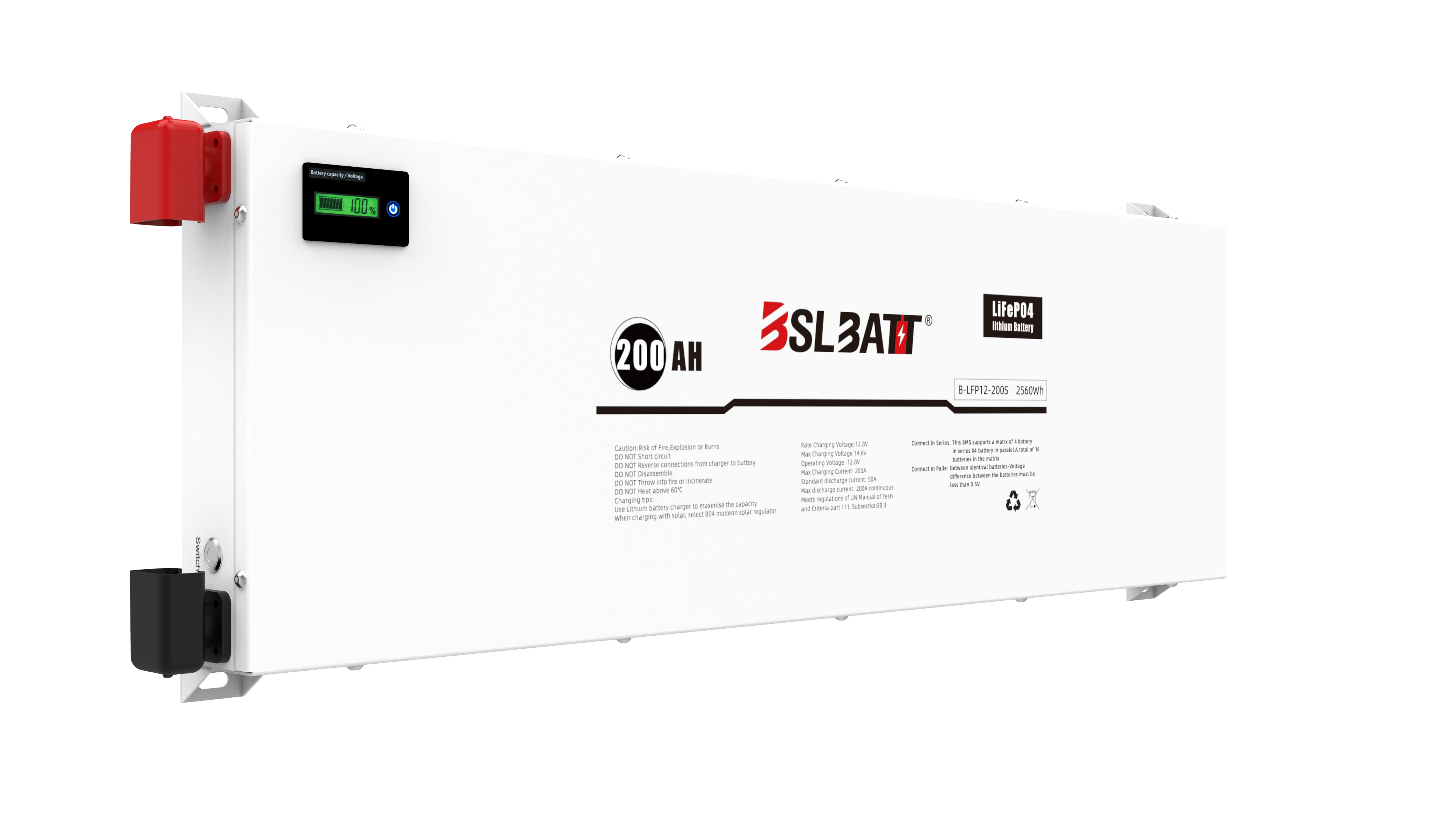

B-LFP12-200S is a powerful 12V 200Ah LiFePO4 RV lithium battery, designed for deep cycle performance in RVs and solar systems. Offering long-lasting power, fast charging, and maintenance-free operation, it ensures reliable energy storage with a long lifespan and high efficiency. Ideal for RV, solar, and off-grid applications, this battery delivers consistent performance while being lightweight and easy to install.
12V LiFePO4 Battery: The Best Lead Acid Battery Replacement for RVs
Switching to a 12V LiFePO4 battery means longer lifespan, faster charging, and maintenance-free power. Unlike lead-acid, it delivers consistent energy, avoids voltage drops, and is 50% lighter, improving efficiency. With higher energy conversion and minimal self-discharge, it’s the perfect Lead Acid Battery Replacement for reliable RV power.
Technical Specifications
| Model | B-LFP12-200S |
| Voltage Range(V) | 9.2~14.6 |
| Cell | 3.2V200Ah |
| Cell Series & Parallels | 4S1P |
| Rated Voltage (V) | 12.8 |
| Rated Capacity (Ah) | 200 |
| Rated Energy (kWh) | 2.56 |
| Maximum Charge Current (A) | 200 |
| Maximum Discharge Current (A) | 200 |
| Pulse Current (A) ( 5s ) | 300 |
| Recommended Discharge Voltage (V) | 11.2 |
| Life Cycle(@25 0.5C/0.25C, 80%DOD) | Approx. 4000 |
| Short-circuit Current (< 10ms) | Approx. 2500A |
| Dimension (W*D*H) | 275*850*70 MM |
| Total Weight (Kg) | Approx. 28 |
| Internal Resistance Fully Charged @25C | ≤5m Ohms |
| Thermal Management | Nature Cooling |
| Operating Temperature Charge | 50℃ |
| Operating Temperature Discharge | -20~65℃ |
| Operating Humidity | 60± 25% R.H. |
| Recommended Discharge Voltage (V) | 13.6~13.8 |
