Product Description

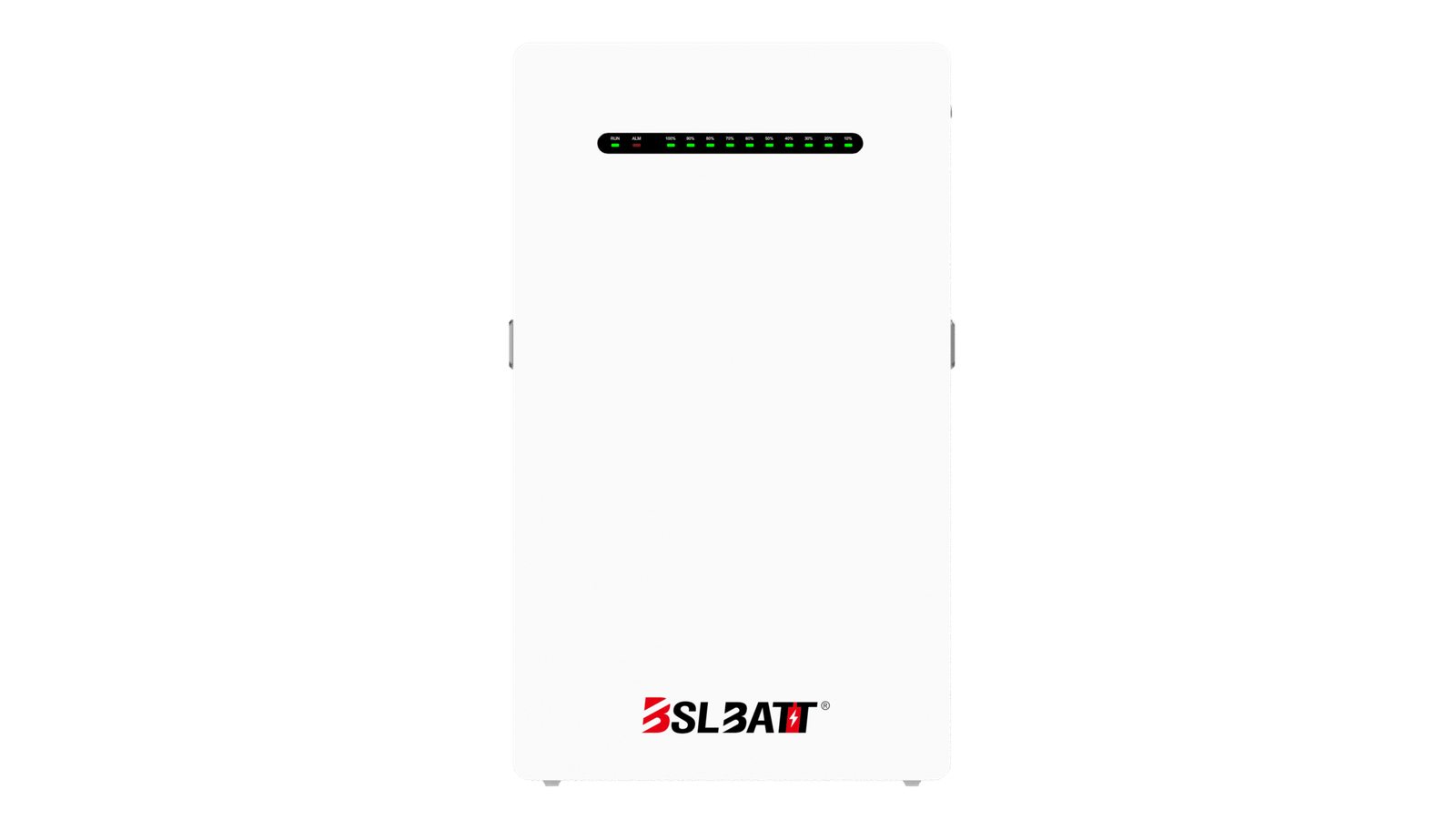

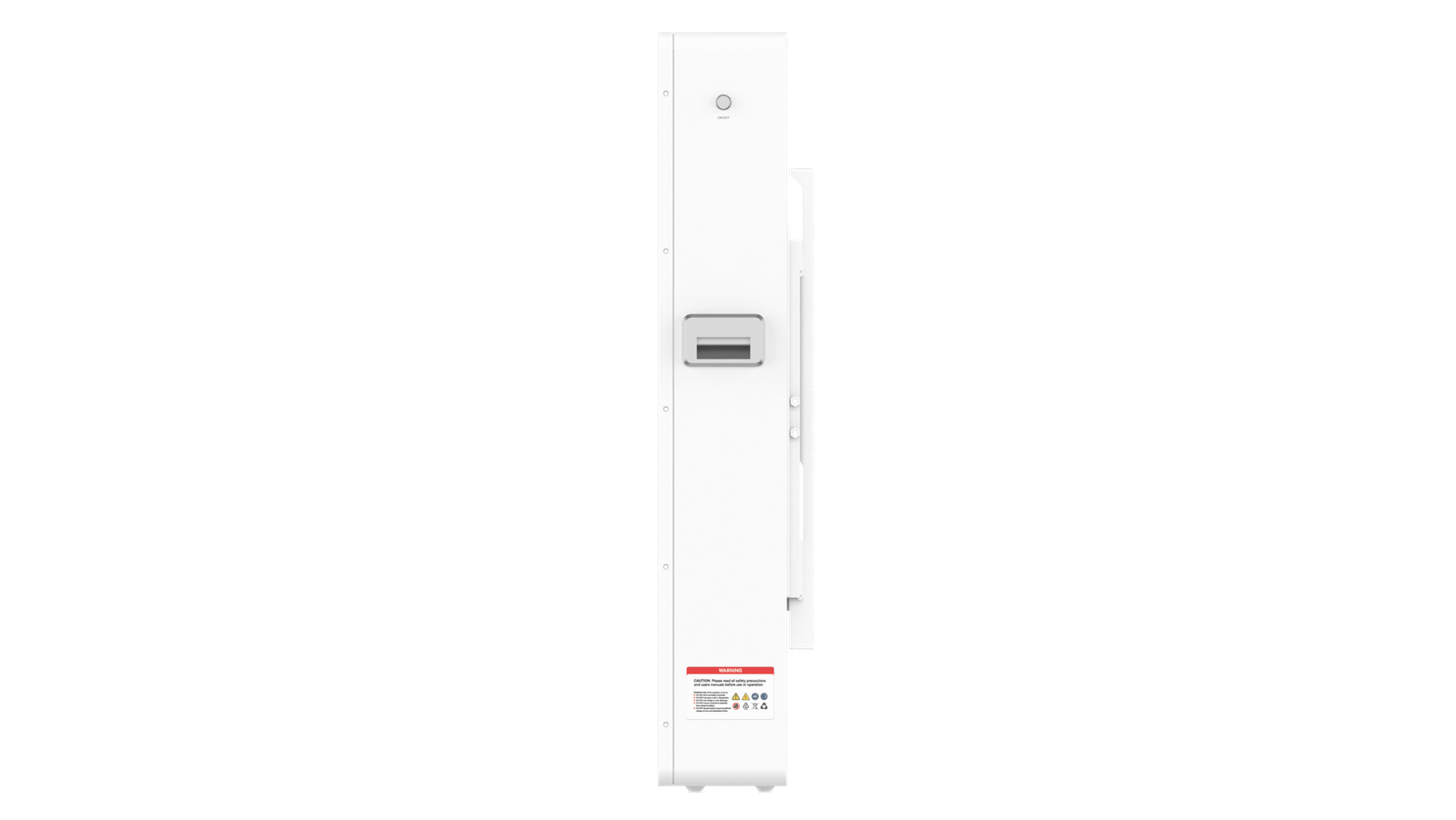

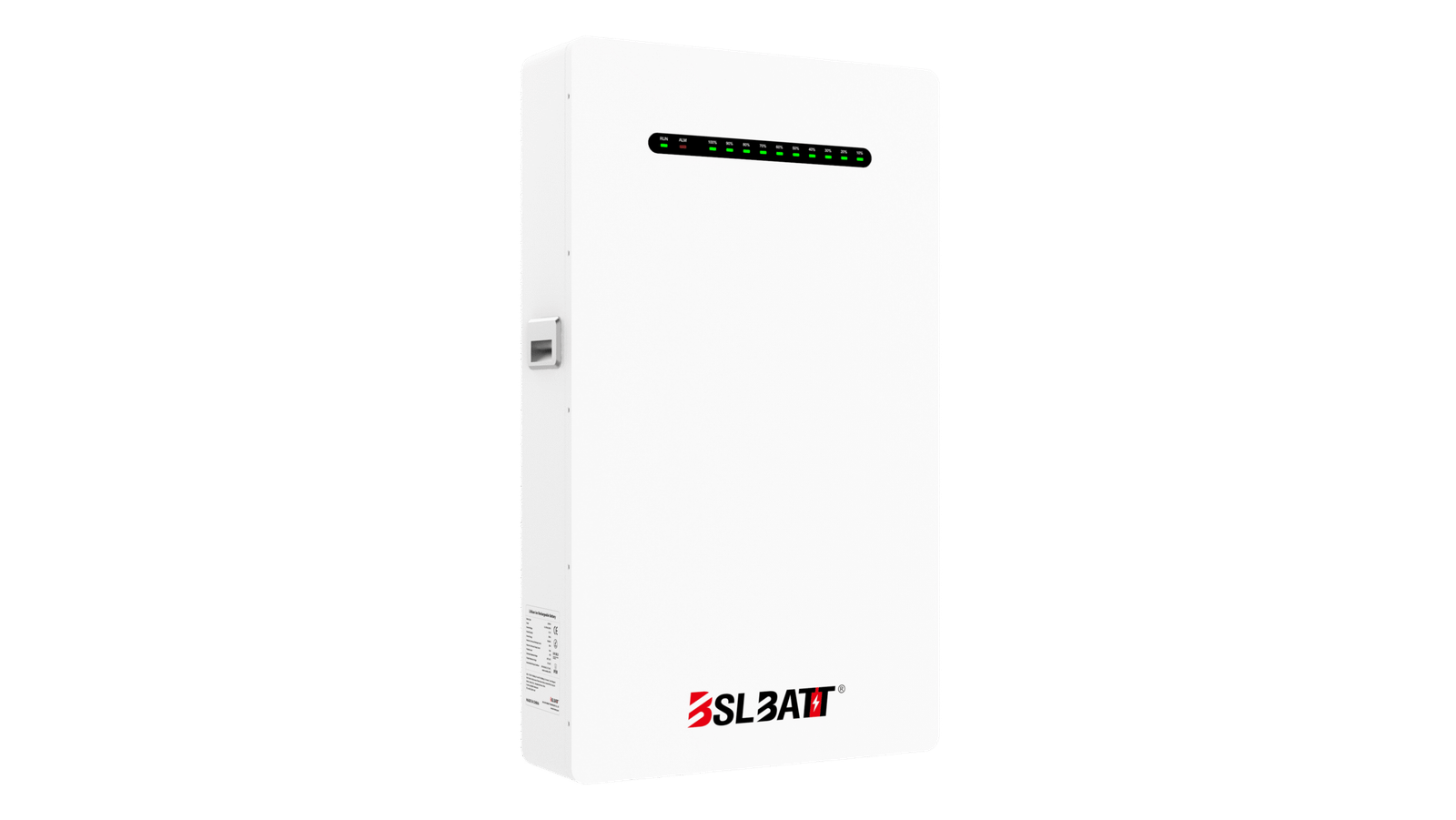

Store renewable energy for your home with LiFePO4 Powerwall
This 10kWh lithium ion battery is the most classic Powerwall Battery for residential solar energy storage, with the advantages of high capacity, high power, low self-discharge, good temperature resistance, etc. It can be connected in parallel with 30 batteries to reach a maximum capacity of 307kWh (although your home may not have such a large wall).
The B-LFP48-200PW uses industry-leading BMS technology to support communication with 12 types of inverters at the same time, RS485 BUS: SRNE, Growatt, LuxPower, Deye, Voltronic; Can BUS: Deye, SOFAR, GoodWe, Growatt, Victron, Studer, SMA.
This 10kWh solar battery has passed the most stringent UL 1973 certification, so you can use it at home with confidence, and we offer 10-year technical support and warranty for this battery.
THE WORLD’S SMARTEST BATTERY MANAGEMENT SYSTEM
The built-in battery management system integrates with multilevel safety features including:
- Overcharge and deep discharge protection
- Voltage and temperature observation
- Over current protection
- Cell monitoring and balancing
- Over-heat protection
This high-performance BSLBATT 10kWh 48V Solar battery has a large power capacity, with fast charging and continuous discharge power, providing 98% efficiency.
Main Features
Leading Manufacturer of Home Solar Batteries
Long Battery Life
High Compatibility
BMS Protection
UL Standard Battery Pack
DC Coupling
15-year Warranty
Product Specification
| Model | B-LFP48-200PW | |
Electrical Characteristics | Nominal Voltage | 51.2V(16series) |
| Nominal Capacity | 100Ah/150Ah/200Ah | |
| Energy | 5120Wh/7500Wh/10240Wh | |
| Internal Resistance | ≤60mΩ | |
| Cycle Life | ≥6000 cycles @ 80% DOD, 25℃, 0.5C ≥5000 cycles @ 80% DOD, 40℃, 0.5C | |
| Design Life | 10-20 years | |
| Months Self Discharge | ≤2%，@25℃ | |
| Effificiency of Charge | ≥98% | |
| Effificiency of Discharge | ≥100% @ 0.2C ≥96% @ 1C | |
Charge | Charge Cut-off Voltage | 54.0V±0.1V |
| Charge Mode | 1C to 54.0V, then 54.0V charge current to 0.02C (CC/CV) | |
| Charge Current | 200A | |
| Max. Charge Current | 200A | |
| Charge Cut-off Voltage | 54V±0.2V(Floating charge voltage) | |
Discharge | Continuous Current | 100A |
| Max. Continuous Discharge Current | 130A | |
| Discharge Cut-off Voltage | 38V±0.2V | |
Environmental | Charge Temperature | 0℃~60℃ (Under 0℃ extra heating mechanism) |
| Discharge Temperature | -20℃~60℃ (Under 0℃work with reduced capacity) | |
| Storage Temperature | -40℃~55℃ @ 60%±25% relative humidity | |
| Water Dust Resistance | Ip21 (The battery cabinet supports Ip55) | |
Mechanical | Method | 16S1P |
| Case | Iron (Insulation painting) | |
| Dimensions | 820*490*147mm | |
| Weight | Approx:56kg/820kg/90kg | |
| Gravimetric Specifific energy | Approx:114Wh/kg | |

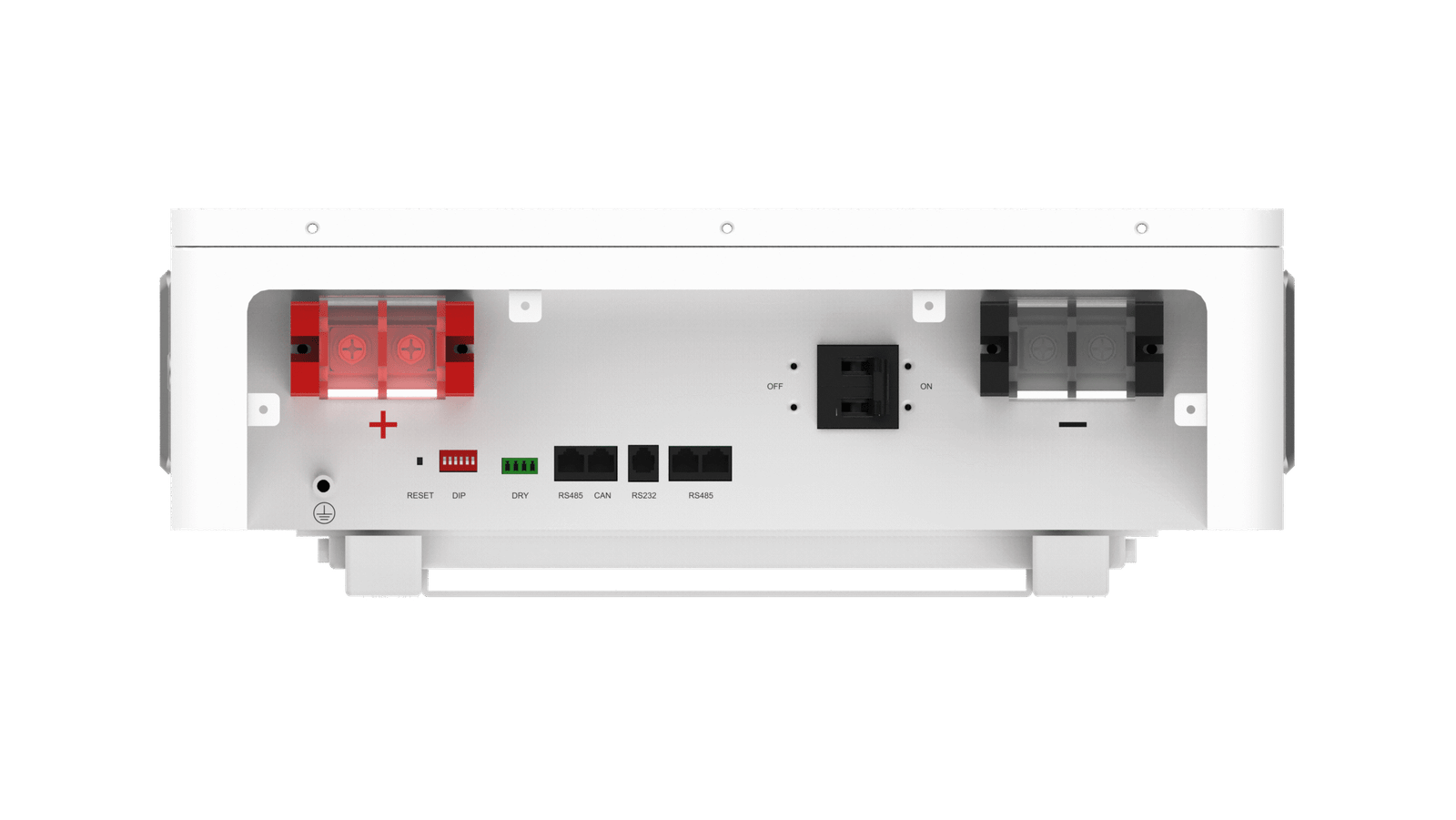

| Protocol (optional) | RS232-PC RS485(B)-PC RS485(A)-Inverter CANBUS-Inverter | |
Datasheet & Manual Downloads
BSLBATT B-LFP48-200PW 10kWh Battery Datasheet & Manual
What we can do for you
B-LFP48-200PW
5.12-307.2 kWh | 51.2V 200Ah
10 kWh Lithium ion 48V 200Ah Solar Battery for House
Get ready to power your life with 10kWh lithium ion battery of energy storage! Our wall-mounted battery is most cost-effective for anyone looking to build their home energy storage system. Forget the hassle of dealing with numerous batteries – the battery consists of a 48V 200Ah lithium-ion battery with the safest LiFePO4 electrochemical technology, ensuring you have reliable and efficient energy storage for your home. The B-LFP48-200PW has received various safety certifications such as UL1973, IEC62619, CEC, etc.
Product Advantages
- 6000 Cycles @ 80% DOD

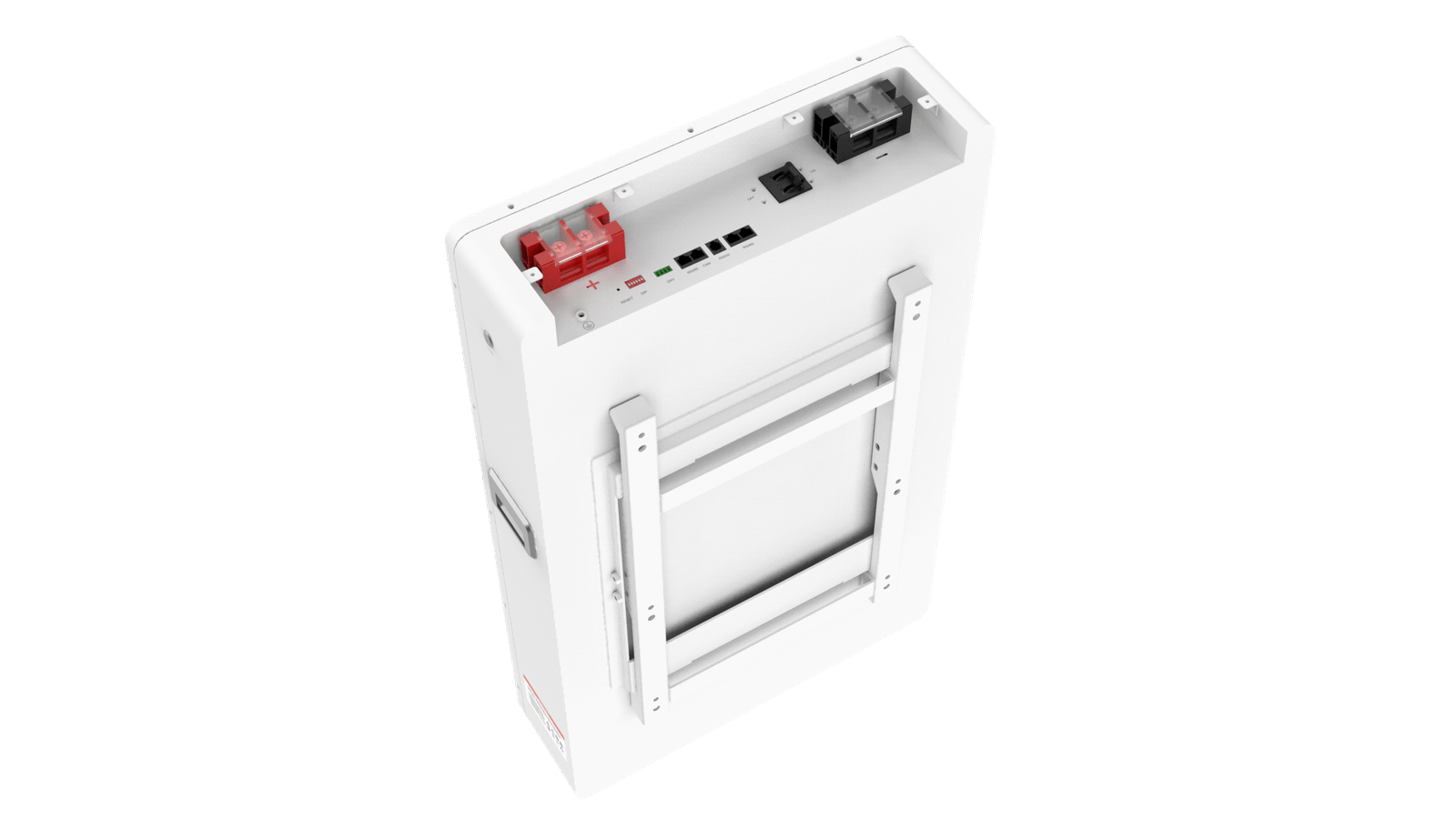

- Modular Design & Wall Mounted
- Continuous current 1C, peak can reach 1.5C
- Max. 30 parallel connections
- Tier One, A+ BYD/CATL Cell Composition
- Compact Size & Easy Installation
- Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
- 10-year warranty
- UL Standard Battery Bank
