Home - Products - B-LFP24-135MH

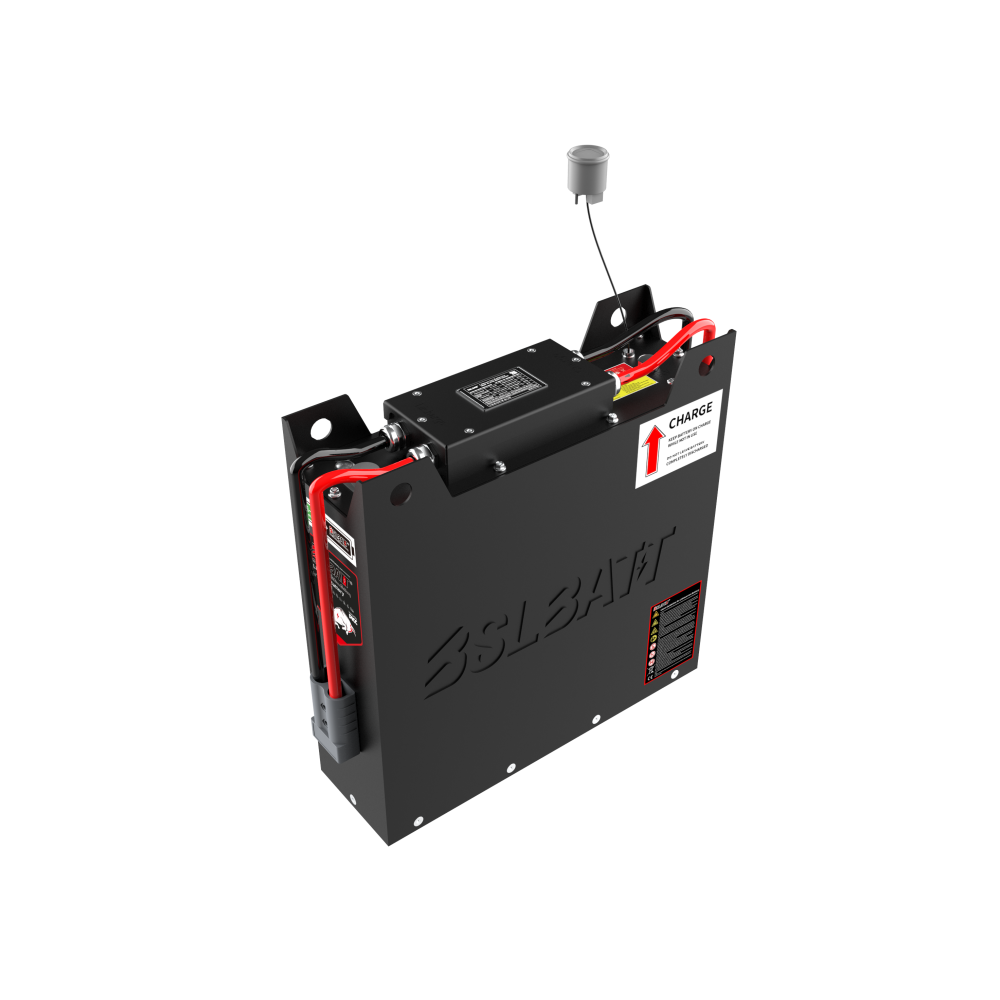

24V 135Ah Forklift Lithium Battery High-Performance for Pallet Truck

B-LFP-24-135MH is a high-performance 24V 110Ah pallet truck battery that replaces traditional lead-acid batteries. Built with advanced lithium technology, it delivers fast charging, a long lifespan of up to 3500 cycles, and requires zero maintenance. Engineered for reliability and efficiency, it is the ideal choice for Toyota, Hyster, and Big Joe pallet trucks, ensuring optimal performance and reduced downtime in demanding warehouse operations.
  • Nominal Voltage:25.6V
  • Nominal Capacity:135Ah
  • Stored Energy:3.46kWh

  • Cycle Life:>3500 times

  • Warranty:8 years

  • Group Mode:RP135AH / 1P*8S*1

  • Self-discharge:<3% per month

  • IP Rating:IP65

Enquire Now
product

Discover More BSLBATT 24V Lithium Battery Solutions

Model Nominal Voltage Nominal Capacity Stored Energy Dimensions(mm) Number of Module Methods Case Weight Standard Casing Material IP Rating
B-LFP24-100MH 25.6V 100Ah 2.56kWh Support Customized 1P*8S*1 42kg( 88.18lbs. ) Steel IP65
B-LFP24-135MH 135Ah 3.46kWh 1P*8S*1 62kg( 136.69lbs. )
B-LFP24-173MH 173Ah 4.43kWh 1P*8S*1 62kg( 136.69lbs. )
B-LFP24-205MH 205Ah 5.25kWh 1P*4S*2 80kg( 176.37lbs. )
B-LFP24-230MH 230Ah 5.89kWh 1P*8S*1 85kg( 187.39lbs. )
B-LFP24-280MH 280Ah 7.17kWh 1P*8S*1 97kg( 213.85lbs. )
B-LFP24-304MH 304Ah 7.78kWh 1P*8S*1 102kg( 224.87lbs. )
B-LFP24-346MH 346Ah 8.86kWh 2P*4S*2 119kg( 262.35lbs. )
B-LFP24-410MH 410Ah 10.50kWh 2P*4S*2 142kg( 313.06lbs. )
B-LFP24-460MH 460Ah 11.78kWh 2P*4S*2 156kg( 343.92lbs. )
B-LFP24-519MH 519Ah 13.29kWh 3P*4S*2 171kg( 376.99lbs. )
B-LFP24-560MH 560Ah 14.34kWh 2P*4S*2 181kg( 399.04lbs. )
B-LFP24-608MH 608Ah 15.56kWh 2P*4S*2 190kg( 418.88lbs. )
B-LFP24-615MH 615Ah 15.74kWh 3P*4S*2 191kg( 421.08lbs. )
B-LFP24-690MH 690Ah 17.66kWh 3P*4S*2 210kg( 462.97lbs. )
B-LFP24-840MH 840Ah 20.99kWh 3P*2S*4 244kg( 537.93lbs. )
B-LFP24-920MH 920Ah 23.55kWh 4P*2S*4 270kg( 595.25lbs. )
B-LFP24-1120MH 1120Ah 28.67kWh 4P*2S*4 317kg( 698.87lbs. )
Enviroment Temp. Range Charge：-20℃~55℃（-4℉~131℉） Discharge：-20℃~55℃（-4℉~131℉） Storge：-20℃~55℃（-4℉~131℉）
benefits

The Main Benefits of BSLBATT Lithium Battery

Trusted Lithium Forklift Battery Manufacturer

  • 13 years of experience in the production and development of lithium battery technology.
  • 950 models from 12V to 614V, compatible with all forklift types and brands.
  • Meet the highest international safety and quality standards including UL2580, IEC62619 and CE marking.
  • Reliable global after-sales service in the U.S., Mexico, Europe, and 24-hour response in China.
Testing

Comprehensive Battery Testing for Guaranteed Quality

Electrical Performance Testing

Verify battery capacity and charge/discharge performance to ensure stable output without overheating or early degradation.

Environmental Testing

Use temperature cycling and thermal shock tests to confirm reliable operation under extreme and changing climates.

Mechanical & Durability Testing

Conduct vibration, drop, and crush tests to ensure the battery structure remains intact during transport and tough conditions.

Safety Testing

Test under short circuit, overcharge, and over-discharge conditions to prevent fire, leakage, or explosion.

Regulatory Compliance Testing

Confirm compliance with international standards such as UL2580, UL2271, UL583 Type EE, and UN38.3 for safe handling and transport.

Learn more about BSLBATT lithium battery products and motive power battery solutions.
