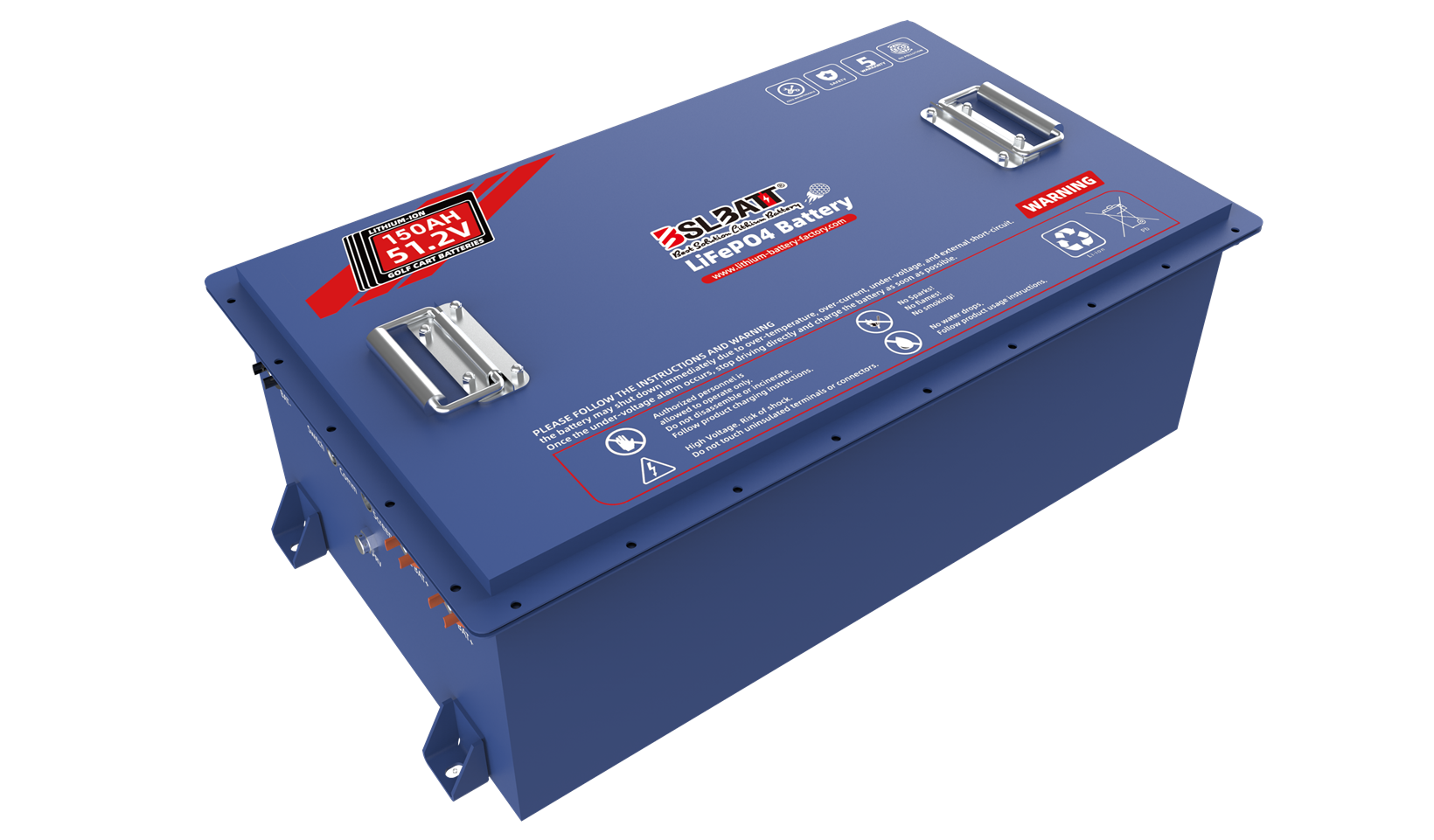

48V Lithium-ion Golf Cart Battery LiFePO4 150Ah Safe Battery

Model B-LFP-48-150GC
Nominal Voltage 51.2V
Nominal Capacity 150AH
Cell Chemistry Lithium Iron Phosphate (LiFePO4)
Cycle Life ≥4000 cycles at 25˚C, 0.5C rate, 80% DOD to 80% of initial capacity
Safety & Intelligence • Continuous voltage, current, and temperature monitoring
• Six redundant safety protections using Level 4 fuses.
• Multiple battery disconnects and Microprocessors
• CAN-Bus Communication
• SOC can check the power at any time
• Bluetooth® (MOS)

Elevate Your Golf Cart Performance With The BSLBATT 48v Lithium-Ion Battery

48V 150Ah lithium-ion golf cart battery will provide excellent speed and effortlessly handle rough ground, allowing your golf cart to enjoy a range of up to 40 miles on a single full charge. The built-in BMS provides powerful protection against overcharging, overdischarging, overcurrent, temperature extremes and short circuits. Its fireproof, shockproof and IP67 waterproof metal housing ensures durability and maintenance-free operation.



Reasons to Choose BSLBATT Lithium Battery

  • Grade A EVE Cells: BSLBATT uses a 48V battery designed for EVs, unlike others that use cheaper 100AH storage batteries, which can shorten lifespan and range.

  • Advanced BMS Compatibility: High-performance battery management system compatible with golf carts like EZGO RXV, Yamaha, and Club Car; supports regenerative braking.

  • Bluetooth & Mobile App: Track charge status, voltage, cycles, and more via an app. OEM dashboard allows remote maintenance, streamlining repairs.↳

  • Sleep Mode: Prevents overdischarge if accessories stay on. Paired with a solenoid valve, it disconnects the motor, controller, and accessories to save energy.↳

  • CAN bus & RS485 Support: Compatible with CAN and RS485 protocols for easy integration with various controllers and displays.↳

  • Active Balancer: Balances cells up to 80 times faster, extending battery life by keeping voltage consistent.↳

  • Durable Steel Shell: IP65-rated thick steel shell resists dents and punctures, improving performance through better heat dissipation.



— Provides near constant voltage when discharging. There is no loss of power or dimming of lights until the golf cart lithium battery is nearly depleted. The battery is guaranteed to cycle over 3,500 times at 80% Depth of Discharge (DoD) and requires no maintenance over its lifetime.
— At 3,500 cycles, which means you can discharge the battery to 20 % and recharge it to 100 % every day for 5 years and get great performance! We offer a 5 year or 10,000 hour warranty.
— Plug and play, easy installation, no modification of trays, no complicated connections, and we recommend using our golf cart lithium battery spacers to fill empty battery locations.
— Intelligent BMS for precise balancing within the battery as well as between cells in a parallel system without the need to charge the batteries individually. Additionally, unlike other battery solutions, our proprietary software determines and manages regenerative current to avoid damaging the battery by forgetting to disconnect it.


BSLBATT 48V Golf Cart Lithium Battery Kit

BSLBATT offers a complete upgrade kit with all the accessories needed for a quick and easy installation. The kit includes the advanced BSLBATT charger, compatible with the Delta-Q protocol and featuring a lithium-ion algorithm that supports 2.5 hours of fast charging. The smart charger has an automatic heat function that heats up below 0°C and charges above 0°C for years of safe charging. 48V golf cart kits include user manual, warranty, 48V 150Ah Li-Ion battery, IP67 rated 1300W waterproof charger, charging adapter and wiring harness, round SOC gauges (with optional square touchscreen) and mounting hardware.

Physical Specifications
Dimensions L*W*H Inches (MM) 28.4*16.5*8.7(720*420*222)
Weight LBS (KG) 163 (74)
Terminal Type M8
Estimated Range: Miles (KM) 60-70 (97-113)
Protection Level IP65
Shell Material iron
Handle Material Metal
Calendar Life 12 years 25℃,SOC 100% ,EOL 80%
Battery Pack Factory SOC 50%
Electrical Specifications
Nominal Voltage (V) 51.2
Capacity AMP Hours (AH) 150AH
Self-Discharge 1-3% per month
Operating Voltage 40V to 58.40V Battery cell: 2.5V~3.65V
Energy (WH) 7,680 Wh
Battery Group Solution 16S1P
Discharge Specifications (Performance and System @77℉/25℃)
Maximum Continuous Discharge Current 220A
Maximum Pulse Discharge Current (30 sec) 370A
Maximum Instantaneous Discharge Current (2 sec) 600A
Charging Specifications
Recommended Standard Charger Current ≤40A
Maximum Continuous Charging Current 80A 50℉~113℉ (10℃~45℃),5%<SOC<80%
Maximum Instantaneous Charging Current (10S) 150A 50℉~113℉ (10℃~45℃),5%<SOC<80%
Temperature Specifications
Discharge temperature range -4°F to 140°F (-20°C to 60°C)
Charge Temperature Range 32°F to 131°F (0℃ to 55°C)
Storage Temperature Range -4°F to 140°F (-20°C to 60°C)

Golf Cart User Manual 24.7.30

Low-speed Power Battery Catalogue 24.10.14

Bluetooth Operating Instructions 2023

B-LFP-36-105GC Specification

B-LFP48-67GC Specification

B-LFP48-105GC Specification

B-LFP48-134GC Specification

B-LFP48-150GC Specification

B-LFP48-200GC Specification

B-LFP72-134GC Specification

B-LFP72-200GC Specification

BSLBATT is a professional lithium-ion battery manufacturer, including R&D and OEM services for more than 20 years. Our products comply with ISO/CE/UL1973/UN38.3/ROHS/IEC62133/CEC standards. The company takes the development and production of the advanced series “BSLBATT” (best solution lithium battery) as its mission. BSLBATT lithium products power a range of applications, including solar power solutions, microgrids, home energy storage, golf carts, RVs, marine, and industrial batteries, and more. The company provides a full range of services and high-quality products, continuing to pave the way for a greener and more efficient future of energy storage.

If you need more in-depth information, contact one of our battery specialists today! If you’re looking to purchase a battery, contact us anytime at +86 (752) -2819 469 or email us now!

Lithium Iron Phosphate (LiFePO4) batteries are a type of lithium battery that provide several advantages over traditional lithium-ion batteries based on LiCoO2 chemistry. LiFePO4 batteries provide much higher specific capacity, superior thermal and chemical stability, enhance safety, improved cost performance, enhanced charge, and discharge rates, and enhanced cycle life, and come in a compact, lightweight package. LiFePO4 batteries offer a cycle life of over 6,000 charge cycles!
All of the Lithium batteries that BSLBATT sells are LiFePO4 batteries.

As with any battery replacement, you need to consider your capacity, power, and size requirements, as well as making sure you have the right charger. Keep in mind, when upgrading from lead-acid to LiFePO4, you may be able to downsize your battery (in some cases up to 50%) and keep the same runtime. Most existing charging sources are compatible with our lithium-iron phosphate batteries. Please contact BSLBATT technical support if you need assistance with your upgrade and they will be happy to make sure you pick the right battery.

BSLBATT® advanced lithium-ion technology can give you 3000 complete charge and discharge cycles at eightieth DoD (Depth of Discharge). once 3000 cycles, you may still have over eightieth of usable energy left. just in case you discharge BSLBATT® at the sixty-fifth DoD rate, you’ll be able to expect to urge 5000 cycles.


● Example 1: One BSLBATT® 12V-100Ah battery, once being discharged at eightieth DoD for 3000 cycles, is currently a 12v 80ah battery.


● Example 2: One BSLBATT® 12V-100Ah, once being discharged at sixty-fifth DoD for 5000 cycles, is currently conjointly a 12v 80ah battery.


In terms of your time period, If you discharge eightieth of the BSLBATT® and so recharge it on a daily basis, seven days every week for eight years, you may still have eightieth of usable battery energy left. this can be an outsized increase in a period of time compared to a traditional Lead Acid battery (AGM, Gel) rated at five hundred cycles for five hundredth DoD cycles.

Each BSLBATT® embeds an inherent BMS. This BMS could be an advanced style that manages 2 main aspects of the battery throughout operation :

Protection options :
● Low Voltage Protection Switch – mechanically disconnects at ten.0V
● Over Voltage Protection Switch – mechanically disconnects at fourteen.8V
● Short Circuit Protection Switch – mechanically and safely disconnects the battery
● Reverse Polarity Protection Switch – mechanically and safely disconnects the battery
● Over-temperature – mechanically shut-down battery till traditional temperature recovery

Balancing options :
● Internal cell reconciliation – mechanically balances BSLBATT® cells throughout battery operation. reconciliation algorithmic rule has been developed to confirm excellent balance between cells throughout battery life.
● Charge reconciliation – for BSLBATT® connected in parallel and/or nonparallel, the BMS can balance, every BSLBATT® severally, so as to produce a perpetually balanced battery system.

The short answer is virtually none. While lead-acid batteries must go through routine saturating charges lasting 14 hours or longer, LiFePO4 technology maintains consistent power even if you only charge it partially. However, extreme temperatures may damage your battery, and you should take care to charge it at the right voltage. 14.6 V is the recommended charging voltage.

BSLBATT® Lithium-ion technology uses the most recent and most advanced intrinsic battery management system (BMS) to watch and stop injury to the battery throughout use. you will utilize a Lead-acid charger with a BSLBATT® Lithium battery, however, some customers prefer employing a Lithium charger to stay a much better life.

Several charging sources area unit possible:
● Alternator: Most alternators (marine, RV, cars) can efficiently charge BSLBATT® lithium-ion technology as before long generator charge voltage is between fourteen.0V and 14.6V (for a 12V battery)
● Conventional lead-acid accumulator charger: BSLBATT® Battery Management System (BMS) is intended to be compatible with customary chargers. you would like to ascertain that the charger encompasses the inherent CC/CV charge algorithmic rule (Constant Current / Constant Voltage) and the charger’s most voltage is comprised between fourteen.0V and 14.6V (for a 12V battery)
● Lithium-Ion charger: this can be the simplest thanks to charging BSLBATT® Lithium-ion battery. These chargers embed some dedicated charge algorithmic rules with precise charge voltage. It conjointly manages with efficiency charge floating voltage and period so as to maximize battery life.

Among all the environmental elements, temperature has the biggest effect on battery performance. The electrochemical reaction on the electrode/electrolyte interface is connected to the temperature. The electrode/electrolyte interface is considered the heart of the battery.

● If the temperature gets lower, the reaction rate of the electrode also gets lower.


● If the battery voltage keeps invariable, the discharge current becomes lower, and also the power output will be reduced.


● If the temperature goes up, the condition is reversed. That is, the battery’s power output will increase.


● The temperature will also affect the speed of the transmission of the electrolyte.


● If the temperature goes up, the speed of transmission will be faster.


● If the temperature goes down, the speed of transmission will be slower.

BSLBATT batteries can be charged with most alternators. Depending on the quality of the alternator, it should work with LiFePO4 batteries. Low quality alternators with poor voltage regulation can cause the BMS to disconnect LiFePO4 batteries. If the BMS disconnects the batteries, the alternator could be damaged. To protect your LiFePO4 battery and alternator please be sure to use a compatible high-quality alternator or install a voltage regulator. Please contact BSLBATT technical support if you need assistance.

Lithium iron phosphate batteries can be charged in as fast as 1 hour. We recommend using a rate that charges our batteries in 2-5 hours. Please refer to the datasheet for your particular model, to find the recommended charge rates. All of our data sheets are available on our website within the product section.

The Best Energy Solutions for Motive Power Batteries

BSLBATT provides one-stop solutions for different industries with material handling or low-speed power vehicles, including forklifts, golf carts, AWPs and motorboats, etc. Contact us to reduce your costs, enhance efficiency, and create value!
